| 南京華巨電子是是國內最大的專業從事ESD靜電防護貼片壓敏電阻生產商之一，公司開發的超低容量ESD壓敏電阻主要應用于一些高速的信號傳輸接口的應用，在消除靜電的同時可以保證信號不失真，主要應用在USB2.0,USB3.0，IEEE1394、DVI以及高速以太網等高速數據傳輸端口中。 | |
|
|
|||||||||||||||||||||||||||||||||||||||||||||
|
|

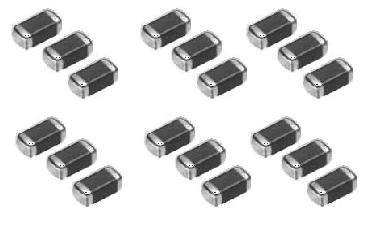

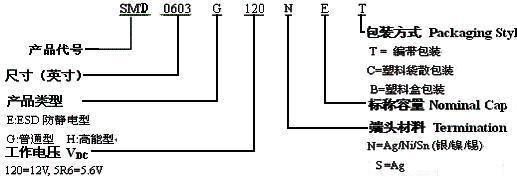

1.0402基本靜電防護型產品：
|
型號 |
工作電壓 |
壓敏電壓 |
最大限制電壓 | 峰值電流 | 能量耐量 | 電容量 |
ESD 測試
IEC61000-4-2 |
||
| Vac | Vdc | 最小值 | 最大值 |
Vc(V) |
IP(A) | ET(J) |
CN(pF) |
||
| V1mA(V) | V1mA(V) |
8/20μs |
8/20µs | 10/1000µs | @1KHZ/1.0V | ||||
| SMD0402E5R5N180T | 4.0 | 5.5 | 10.0 | 14.0 | 18 | 3 | 0.005 | 18 |
接觸放電電壓:8kv
空氣放電電壓:15kv |
| SMD0402E5R5N300T | 4.0 | 5.5 | 10.0 | 14.0 | 18 | 5 | 0.005 | 30 | |
| SMD0402E5R5N500T | 4.0 | 5.5 | 10.0 | 14.0 | 18 | 10 | 0.01 | 50 | |
| SMD0402E5R5N800T | 4.0 | 5.5 | 10.0 | 14.0 | 18 | 10 | 0.02 | 80 | |
| SMD0402E5R5N101T | 4.0 | 5.5 | 10.0 | 14.0 | 18 | 20 | 0.05 | 100 | |
| SMD0402E8R0N330T | 6.0 | 8.0 | 10.0 | 16.0 | 26 | 3 | 0.005 | 33 | |
| SMD0402E8R0N101T | 6.0 | 8.0 | 10.0 | 16.0 | 26 | 3 | 0.01 | 100 | |
| SMD0402E9R0N180T | 6.4 | 9.0 | 11.0 | 16.0 | 26 | 3 | 0.005 | 18 | |
| SMD0402E9R0N300T | 6.4 | 9.0 | 11.0 | 16.0 | 26 | 5 | 0.005 | 30 | |
| SMD0402E9R0N500T | 6.4 | 9.0 | 11.0 | 16.0 | 26 | 10 | 0.01 | 50 | |
| SMD0402E9R0N800T | 6.4 | 9.0 | 11.0 | 16.0 | 26 | 15 | 0.02 | 80 | |
| SMD0402E9R0N101T | 6.4 | 9.0 | 11.0 | 16.0 | 26 | 20 | 0.05 | 100 | |
| SMD0402E140N180T | 10.0 | 14.0 | 16.0 | 22.0 | 39 | 3 | 0.005 | 18 | |
| SMD0402E140N300T | 10.0 | 14.0 | 16.0 | 22.0 | 39 | 5 | 0.01 | 30 | |
| SMD0402E140N500T | 10.0 | 14.0 | 16.0 | 22.0 | 39 | 10 | 0.02 | 50 | |
| SMD0402E140N800T | 10.0 | 14.0 | 16.0 | 22.0 | 39 | 15 | 0.03 | 80 | |
| SMD0402E140N101T | 10.0 | 14.0 | 16.0 | 22.0 | 39 | 20 | 0.05 | 100 | |
| SMD0402E180N150T | 12.7 | 18.0 | 22.0 | 28.0 | 48 | 2 | 0.05 | 15 | |
| SMD0402E180N180T | 12.7 | 18.0 | 22.0 | 28.0 | 48 | 5 | 0.01 | 18 | |
| SMD0402E180N300T | 12.7 | 18.0 | 22.0 | 28.0 | 48 | 10 | 0.02 | 30 | |
| SMD0402E180N500T | 12.7 | 18.0 | 22.0 | 28.0 | 48 | 10 | 0.02 | 50 | |
| SMD0402E180N800T | 12.7 | 18.0 | 22.0 | 28.0 | 48 | 15 | 0.03 | 80 | |
| SMD0402E180N101T | 12.7 | 18.0 | 22.0 | 28.0 | 48 | 20 | 0.05 | 100 | |
| SMD0402E260N180T | 18.4 | 26.0 | 31.0 | 38.0 | 70 | 5 | 0.02 | 18 | |
| SMD0402E260N300T | 18.4 | 26.0 | 31.0 | 38.0 | 70 | 10 | 0.03 | 30 | |
| SMD0402E180N500T | 18.4 | 26.0 | 31.0 | 38.0 | 70 | 10 | 0.03 | 50 | |
2.0603基本靜電防護型產品：
|
型號 |
工作電壓 |
壓敏電壓 |
最大限制電壓 | 峰值電流 | 能量耐量 | 電容量 |
ESD 測試
IEC61000-4-2 |
||
| Vac | Vdc | 最小值 | 最大值 |
Vc(V) |
IP(A) | ET(J) |
CN(pF) |
||
| V1mA(V) | V1mA(V) |
8/20μs |
8/20µs | 10/1000µs | @1KHZ/1.0V | ||||
| SMD0603E5R5N180T | 4.0 | 5.5 | 10.0 | 14.0 | 18 | 3 | 0.005 | 18 |
接觸放電電壓:8kv
空氣放電電壓:15kv |
| SMD0603E5R5N300T | 4.0 | 5.5 | 10.0 | 14.0 | 18 | 5 | 0.005 | 30 | |
| SMD0603E5R5N500T | 4.0 | 5.5 | 10.0 | 14.0 | 18 | 10 | 0.01 | 50 | |
| SMD0603E5R5N800T | 4.0 | 5.5 | 10.0 | 14.0 | 18 | 10 | 0.02 | 80 | |
| SMD0603E5R5N101T | 4.0 | 5.5 | 10.0 | 14.0 | 18 | 20 | 0.05 | 100 | |
| SMD0603E8R0N330T | 6.0 | 8.0 | 10.0 | 16.0 | 26 | 3 | 0.005 | 33 | |
| SMD0603E8R0N101T | 6.0 | 8.0 | 10.0 | 16.0 | 26 | 3 | 0.01 | 100 | |
| SMD0603E9R0N180T | 6.4 | 9.0 | 11.0 | 16.0 | 26 | 3 | 0.005 | 18 | |
| SMD0603E9R0N300T | 6.4 | 9.0 | 11.0 | 16.0 | 26 | 5 | 0.005 | 30 | |
| SMD0603E9R0N500T | 6.4 | 9.0 | 11.0 | 16.0 | 26 | 10 | 0.01 | 50 | |
| SMD0603E9R0N800T | 6.4 | 9.0 | 11.0 | 16.0 | 26 | 15 | 0.02 | 80 | |
| SMD0603E9R0N101T | 6.4 | 9.0 | 11.0 | 16.0 | 26 | 20 | 0.05 | 100 | |
| SMD0603E140N180T | 10.0 | 14.0 | 16.0 | 22.0 | 39 | 3 | 0.005 | 18 | |
| SMD0603E140N300T | 10.0 | 14.0 | 16.0 | 22.0 | 39 | 5 | 0.01 | 30 | |
| SMD0603E140N500T | 10.0 | 14.0 | 16.0 | 22.0 | 39 | 10 | 0.02 | 50 | |
| SMD0603E140N800T | 10.0 | 14.0 | 16.0 | 22.0 | 39 | 15 | 0.03 | 80 | |
| SMD0603E140N101T | 10.0 | 14.0 | 16.0 | 22.0 | 39 | 20 | 0.05 | 100 | |
| SMD0603E180N150T | 12.7 | 18.0 | 22.0 | 28.0 | 48 | 2 | 0.05 | 15 | |
| SMD0603E180N180T | 12.7 | 18.0 | 22.0 | 28.0 | 48 | 5 | 0.01 | 18 | |
| SMD0603E180N300T | 12.7 | 18.0 | 22.0 | 28.0 | 48 | 10 | 0.02 | 30 | |
| SMD0603E180N500T | 12.7 | 18.0 | 22.0 | 28.0 | 48 | 10 | 0.02 | 50 | |
| SMD0603E180N800T | 12.7 | 18.0 | 22.0 | 28.0 | 48 | 15 | 0.03 | 80 | |
| SMD0603E180N101T | 12.7 | 18.0 | 22.0 | 28.0 | 48 | 20 | 0.05 | 100 | |
| SMD0603E260N180T | 18.4 | 26.0 | 31.0 | 38.0 | 70 | 5 | 0.02 | 18 | |
| SMD0603E260N300T | 18.4 | 26.0 | 31.0 | 38.0 | 70 | 10 | 0.03 | 30 | |
| SMD0603E180N500T | 18.4 | 26.0 | 31.0 | 38.0 | 70 | 10 | 0.03 | 50 | |
2.0805基本靜電防護型產品：
|
型號 |
工作電壓 |
壓敏電壓 |
最大限制電壓 | 峰值電流 | 能量耐量 | 電容量 |
ESD 測試
IEC61000-4-2 |
||
| Vac | Vdc | 最小值 | 最大值 |
Vc(V) |
IP(A) | ET(J) |
CN(pF) |
||
| V1mA(V) | V1mA(V) |
8/20μs |
8/20µs | 10/1000µs | @1KHZ/1.0V | ||||
| SMD0805E5R5N180T | 4.0 | 5.5 | 10.0 | 14.0 | 23 | 3 | 0.005 | 18 |
接觸放電電壓:8kv
空氣放電電壓:15kv |
| SMD0805E180N101T | 12.7 | 18.0 | 22.0 | 28.0 | 48 | 20 | 0.005 | 100 | |
| SMD0805E260N800T | 18.4 | 26.0 | 31.0 | 38.0 | 70 | 20 | 0.005 | 80 | |
| SMD0805E300N500T | 21.3 | 30.0 | 37.0 | 46.0 | 78 | 15 | 0.005 | 50 | |

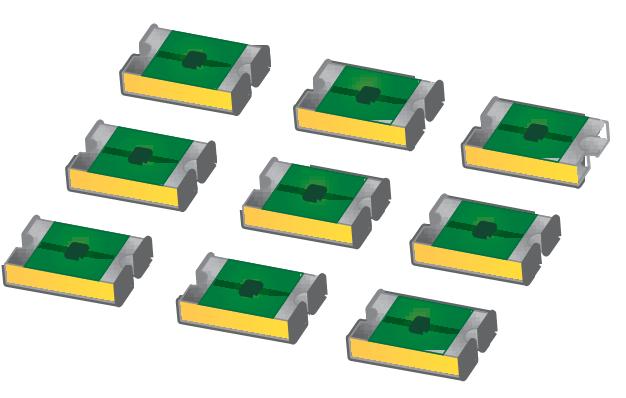

2.低容靜電防護型產品：
|
型號 |
工作電壓 | 壓敏電壓 | 最大限制電壓 |
電容量 |
ESD 測試
IEC61000-4-2 |
|||
| Vac | Vdc | 最小值 | 最大值 |
Vc(V) |
CN(pF) | △CP(pF) | ||
| V1mA(V) |
8/20μs |
@1MHZ | ||||||
| SMD0402E140N100T | 10.0 | 14.0 | 16.0 | 22.0 | 20 | 10 | ±30% |
接觸放電電壓:8kv
空氣放電電壓: 15kv |
| SMD0402E140N120T | 10.0 | 14.0 | 16.0 | 22.0 | 20 | 12 | ±30% | |
| SMD0402E180N1R5T | 14.0 | 18.0 | 46 | 60 | 110 | 1.5 | ±2pF | |
| SMD0402E180N3R0T | 14.0 | 18.0 | 22 | 34 | 58 | 3.0 | ±2pF | |
| SMD0402E180N5R0T | 14.0 | 18.0 | 22 | 34 | 58 | 5 | ±2pF | |
| SMD0402E180N100T | 14.0 | 18.0 | 22 | 34 | 58 | 10 | ±30% | |
| SMD0402E180N150T | 14.0 | 18.0 | 22 | 34 | 58 | 15 | ±30% | |
| SMD0402E260N5R0T | 20.0 | 26.0 | 46 | 60 | 110 | 5 | ±2pF | |
| SMD0402E420N3R0T | 30.0 | 42.0 | 46 | 75 | 135 | 3 | ±2pF | |
| SMD0603E5R0N5R0T | 4.0 | 5.0 | 22 | 34 | 58 | 5 | ±2pF | |
| SMD0603E9R0N3R0T | 6.0 | 9.0 | 36 | 60 | 110 | 3 | ±2pF | |
| SMD0603E120N5R0T | 9.0 | 12.0 | 30 | 40 | 70 | 5 | ±2pF | |
| SMD0603E180N3R0T | 14.0 | 18.0 | 36 | 60 | 110 | 3 | ±2pF | |
| SMD0603E180N7R0T | 14.0 | 18.0 | 36 | 60 | 110 | 7 | ±2pF | |
| SMD0603E180N120T | 14.0 | 18.0 | 22 | 34 | 58 | 12 | ±30% | |
| SMD0603E180N150T | 14.0 | 18.0 | 22 | 34 | 58 | 15 | ±30% | |
| SMD0603E180N220T | 14.0 | 18.0 | 22 | 34 | 58 | 22 | ±30% | |
2.1特性及應用
壓敏電壓的溫度特性
2.1靜電消除測試電路及波形圖
2.3各個系統傳輸時所建議的電容值
| 應用介面 |
傳輸速率 |
上升時間 |
建議使用容值 |
| HDMI 1.3 Data Port | 10.2G bps | 0.02～0.03ns | ＜0.15pF |
|
USB 3.0 Data Port |
4.80G bps |
0.05～0.06ns |
＜0.3pF |
|
USB 2.0 Data Port |
480M bps |
0.5～0.6ns |
＜4pF |
|
USB 1.0 Data Port |
12M bps |
4～20ns |
5～10 pF |
|
Wireless Device |
1.5M bps |
75～300ns |
5～10 pF |
|
RS232, IrDA1.0 |
115.2 K |
1us～8us |
10～100 pF |
|
Audio (Microphone/Sperker) |
20～20K Hz |
0.05ms～5ms |
10～1000 pF |
3高分子超低容值靜電抑制器產品規格
|
型號 |
工作電壓 | 觸發電壓 | 最大限制電壓 | 電容量 | 漏電流 |
ESD 測試
IEC61000-4-2 |
|
| Vac | Vdc | VV |
Vc(V) |
CN(pF) | IL | ||
|
8/20μs |
@1MHZ | (nA) | |||||
| SMD0402ESD5R5T | 4.0 | 5.5 | 350 | 35 | ＜0.15 | ＜10 |
接觸放電電壓:8kv
空氣放電電壓: 15kv |
| SMD0402ESD6R0T | 5.0 | 6.0 | 350 | 35 | ＜0.15 | ＜10 | |
| SMD0402ESD120T | 10.0 | 12.0 | 300 | 35 | ＜0.15 | ＜10 | |
| SMD0402ESD140T | 12.0 | 14.0 | 500 | 50 | ＜0.15 | ＜10 | |
| SMD0402ESD240T | 18.0 | 24.0 | 500 | 50 | ＜0.15 | ＜10 | |
| SMD0603ESD5R5T | 4.0 | 5.5 | 350 | 35 | ＜0.15 | ＜10 | |
| SMD0603ESD6R0T | 5.0 | 6.0 | 350 | 35 | ＜0.15 | ＜10 | |
| SMD0603ESD120T | 10.0 | 12.0 | 150 | 35 | ＜0.15 | ＜10 | |
| SMD0603ESD240T | 18.0 | 24.0 | 125 | 35 | ＜0.15 | ＜10 | |
|
SMD0603ESD240T1 |
18.0 | 24.0 | 500 | 50 | ＜0.15 | ＜10 | |
| SMD0603ESD300T | 25.0 | 30.0 | 300 | 35 | ＜0.15 | ＜10 | |
3.1、可靠性
|
試驗項目 |
試驗方法 |
技術要求 |
|
常溫受潮 |
90%RH，40℃，施加工作電壓1000小時 |
△VV/VV≤±10% |
|
溫度沖擊 |
-40～85℃,30min,5循環 |
|
|
高溫壽命 |
環境溫度：85℃下施加工作電壓，保持1000小時 |
|
|
耐焊接熱 |
260℃ 10s |
1. △VV/VV≤±10% |
|
IEC 61000-4-2 4級靜電放電測試（接觸放電） |
放電測試電壓：8kV；峰值放電電流30A；上升時間：0.7～1ns |
△VV/VV≤±10% |
3.2、包裝
|
尺寸 |
數量 |
|
0402 |
10000pcs |
|
0603 |
5000pcs |
3.3、應用領域
USB、HDMI、IEEE1394、DVI、高速以太網等高速數據傳輸端口。
|
